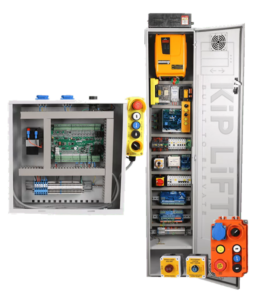

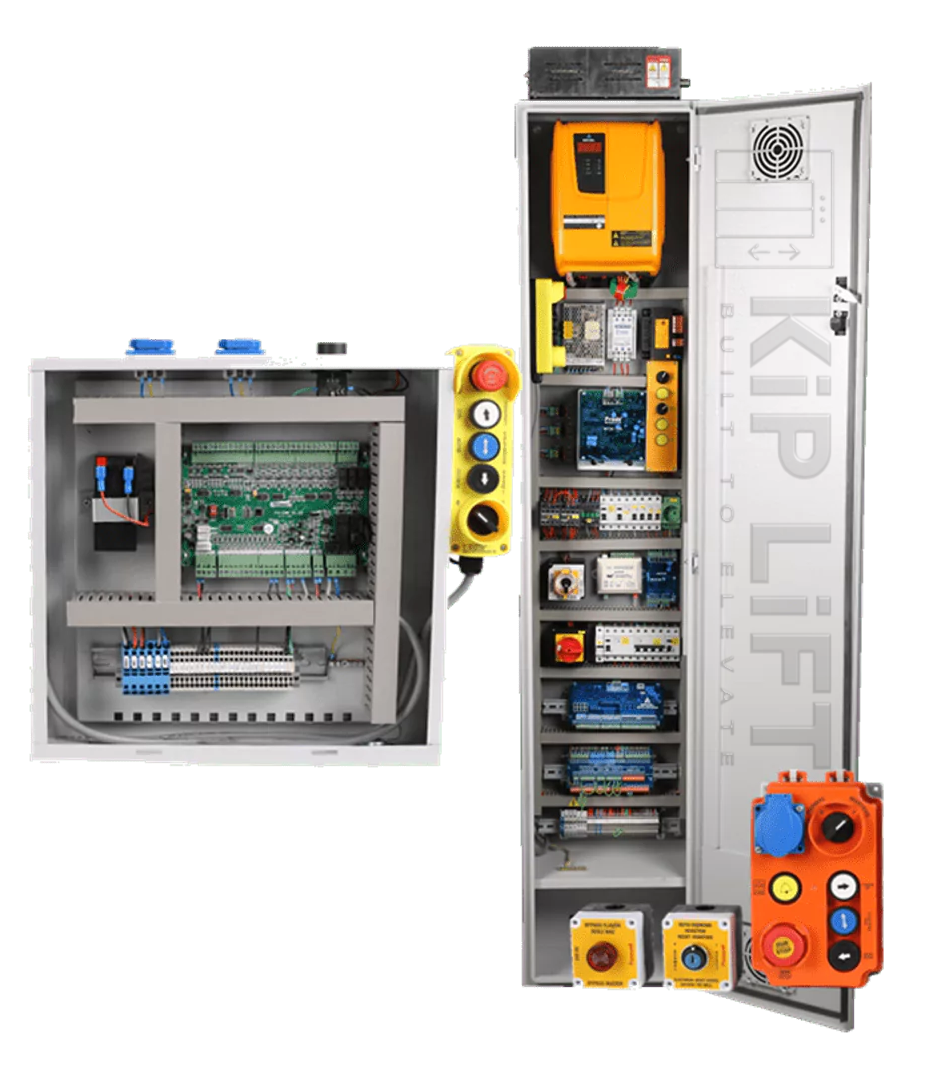

The KL-CME-ARL-900 ARCODE Elevator Control Panel is engineered for high-speed traction (MR/MRL) and hydraulic elevators, supporting up to 64 stops and operational speeds of up to 4 m/s.Fully compliant with EN 81-20, the ARL-900 offers a robust communication backbone, advanced diagnostics, wide display compatibility, and enhanced door-bridging architecture for modern elevator installations.

1. System Architecture & Connectivity

Cabin Units

• Serial cabin communication via CANBus line

• One-to-one plug-in flat cable connection between panel and inspection box

• Single-cable COP ↔ revision box connection

Floor Units

• Serial communication via CANBus

• Optional parallel operation via SP16 card

• Shaft-wide CANBus line with plug-in connections floor-to-floor

• Single-out LOP plug-in connection on each landing

Door Contact Line

• Door contact wiring extended across the shaft with plug-in connectors

• Plug-lock connections for landing door safety contacts

• Pit bottom plug-in connection

2. Positioning System

• High-precision encoder-based shaft copying

• Alternative magnetic switch & magnet positioning system

3. Automatic Door Control

• Compatible with all automatic door types

• Independent dual-door control for cabin entrances

• Dedicated door I/O:

  • 1× in revision box

  • 2× in control panel

4. Indicator & Display Options (COP)

• 5.7” TFT color display

• 240×128 graphic LCD

• 128×64 LCD (horizontal/vertical)

• 2×30 mm dot matrix

• 3×30 mm dot matrix

5. Call/Display Module Options (LOP)

• 240×128 graphic LCD

• 128×64 graphic LCD

• 2×30 mm dot matrix

• 3×30 mm dot matrix

• No-display call board

6. Return & Emergency Functions

• Automatic return-to-floor via 1-phase 220 VAC UPS

• Or via battery groups

7. Door Bridging (DBR)

• Early door opening

• Open-door level renewal

• Powered by integrated DBR door-bridging circuit

8. Motor–Phase Protection

• Built-in motor–phase protection through panel I/O infrastructure

9. Programmable I/O

• Freely programmable inputs and outputs on:

  • Motherboard

  • Cabin cards

  • Floor cards

10. Diagnostic & Test Tools

• COP–LOP connection test mode

• Remote ARCODE access via CANBus

• Parameter copy & firmware update via SD card

11. Distance Control

• Remote access using hand terminal connected anywhere on CANBus line

12. Power Distribution & Safety

• Fault-protected cabin & shaft power supplies

• Shaft lighting via impulse switch (cabin top & pit bottom)

• Emergency alarm siren (cabin top & pit bottom)

• Dedicated safety-circuit terminals in:

  • Control Panel

  • Revision Box

  • Pit Box

13. Compliance

• EMC test report

• Fully compliant with EN 81-20

• Suitable for high-duty traction & hydraulic elevators

14. Menu Languages

The ARCODE interface supports a wide multilingual menu structure, offering full accessibility for international installations:

Turkish, English, Russian, French, Dutch, Spanish, Swedish, Polish, German, Slovak
