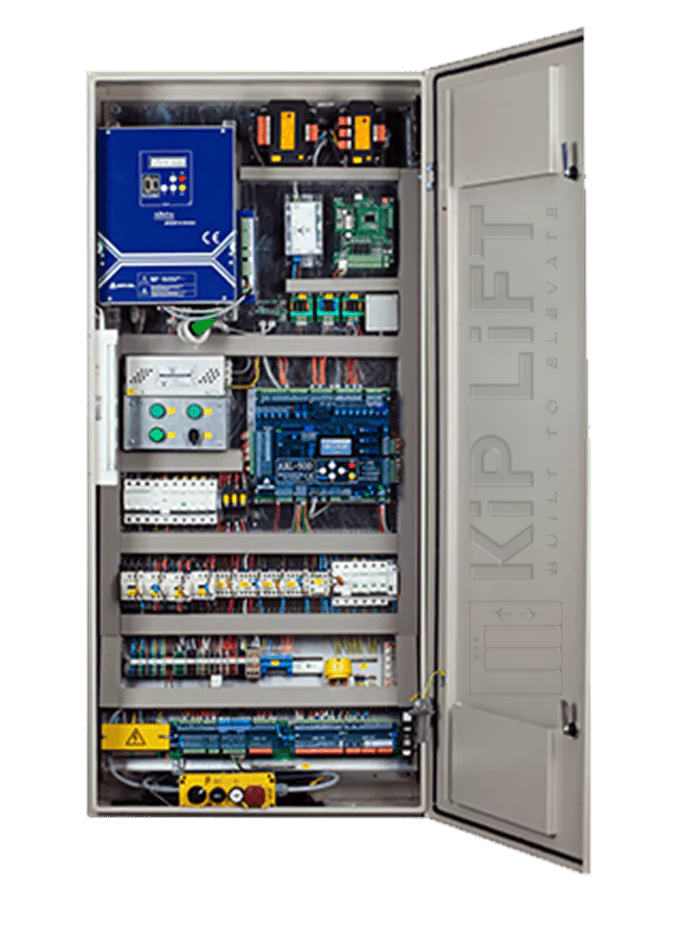

KL-CME-ARL-500 Elevator Control Panel

The KL-CME-ARL-500 Elevator Control Panel is engineered for modern traction and hydraulic elevators operating up to 48 stops and speeds of 2.5 m/s.
Designed in compliance with EN 81-1/2+A3 and fully compatible with EN 81-20, it integrates high-speed CANBus communication, advanced positioning systems, and extensive I/O flexibility to deliver maximum reliability and seamless operation.

System Connectivity

• Serial CANBus communication with cabin units

• Plug-in flat cable for panel ↔ inspection box

• Single-cable COP ↔ revision box connection

• Shaft-wide CANBus backbone for LOP integration

• Door-contact line extended across floors via plug-in links

• Pit bottom unit connection with a single plug-in cable

Car Positioning

• High-precision encoder system

• Magnetic switch + magnet alternative

Automatic Door Control

• Compatible with all automatic door operators

• Independent dual-door management

• Dedicated door I/O on both revision box and control panel

Indicators & Displays

COP options: 240×128 LCD, 128×64 LCD, 2×30 DOT, 3×30 DOT
LOP options: 240×128 LCD, 128×64 LCD, 2×30 DOT, 3×30 DOT, or no-display call board

Return & Emergency Functions

• AKUS-SD return-to-floor for traction elevators

• ARL-SARJ + 2×12V batteries for hydraulic emergency descent

Safety & Diagnostics

• Early door opening & door-level renewal via door bridging

• Motor–phase protection

• Programmable inputs/outputs on all system cards

• COP–LOP connection test function

• CANBus access for remote “distance control”

• Protected cabin/shaft power supply

• Shaft lighting control via impulse switch

• Integrated emergency alarm siren

• Dedicated safety-circuit terminals

The KL-CME-ARL-500 offers an advanced architecture with scalable functionality, making it ideal for new installations and modernization projects requiring performance, safety, and flexibility.
