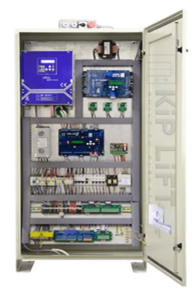

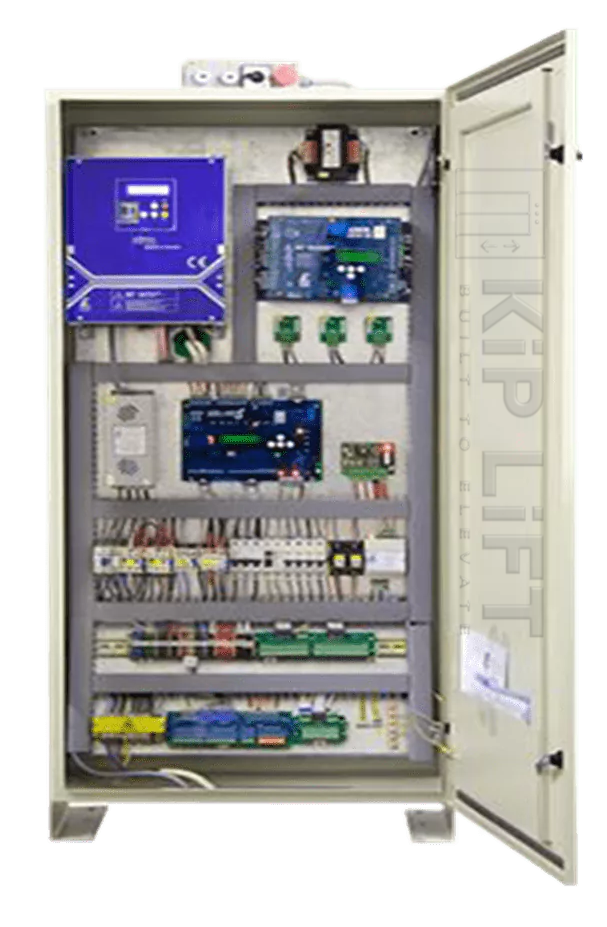

KL-CME-ARL-200 Elevator Control Panel

Long Description

The KL-CME-ARL-200 Elevator Control Panel is engineered for low- to mid-rise elevators requiring robust operation, simplified installation, and advanced safety-circuit management. Fully compliant with EN 81-1 and EN 81-20, the ARL-200 supports single-speed or two-speed traction systems and offers seamless integration with all automatic door types.

Equipped with KBK-5 safety-circuit board support, MKR-02C motor–phase protection, auto_kg door-control modules, and flexible cabin/floor wiring options, the ARL-200 provides a stable and efficient control solution for modern elevator installations.

Technical Features

1. Cabin & Floor Connectivity

• Parallel cabin wiring

• Optional RK22 revision box serial connection

• Parallel floor cable connection

2. Car Positioning

• Magnetic switches + magnet positioning system

3. Automatic Door Control

• Compatible with all automatic door types

• Dual-door control (1 auto_kg card per door)

4. Return-to-Floor System

• Integrated AKUS-SD remunerator board (optional)

5. Motor–Phase Protection

• Via MKR-02C protection card

6. Indicator Outputs

• Internal 7-segment display contacts

• Binary/Gray output via GKS card (optional)

7. Safety Circuit Integration

• Dedicated KBK-5 board connection ensuring safe and compliant wiring

8. Compliance

• Fully compatible with EN 81-20 and EN 81-1

The KL-CME-ARL-200 is designed for installers seeking reliability, easy commissioning, and future-proof safety architecture.
