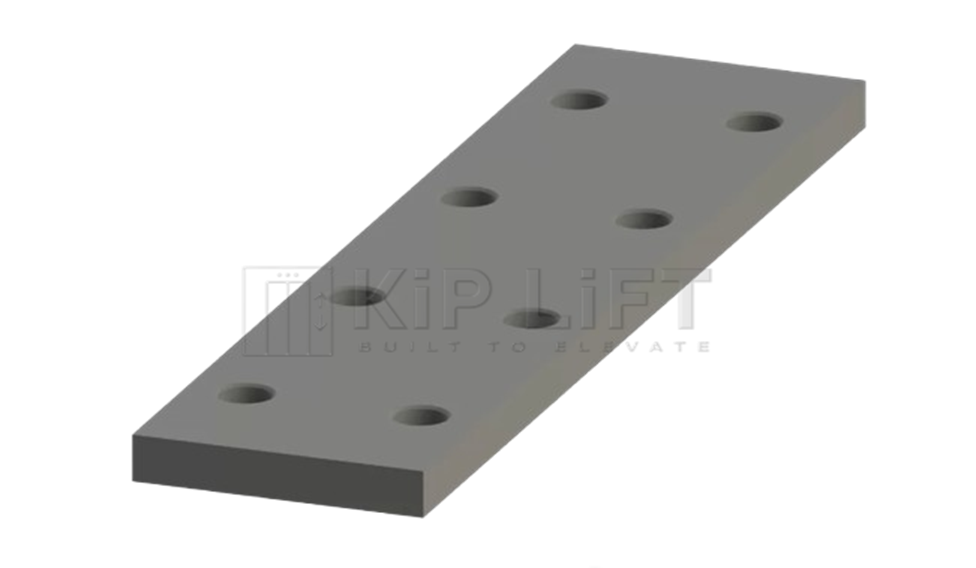

The KL-RCS-CRY-404 Rail Fishplate is an essential structural component used to join two elevator guide rails with maximum rigidity and alignment precision. Manufactured from high-strength steel and produced according to international elevator rail standards, it ensures continuous rail straightness and eliminates lateral or vertical displacement at the connection point.
Featuring a multi-hole fastening layout, the fishplate distributes mechanical loads evenly while minimizing vibration and noise during elevator travel. It is compatible with standard rail types (T45, T50, T70, T82, T89, T90, T125) and supports various screw sets and clip types specified by industry norms.
DIMENSIONS & CONNECTION DETAILS
| Rail Code | Rail Size | D (mm) | L1 (mm) | L2 (mm) | L3 (mm) | V (mm) | B2 (mm) | B3 (mm) | Screw Set | T-Clip Type |
|---|---|---|---|---|---|---|---|---|---|---|
| T45 | 45×45×5 mm | 9 | 160 | 65 | 15 | 3 | 50 | 25 | M8×25 / M8×30 | M1 (DIN 7168) |
| T50 | 50×50×5 mm | 9 | 200 | 75 | 25 | 8 | 50 | 30 | M8×25 / M8×30 | M1 |
| T70 | 70×65×9 mm | 13 | 250 | 105 | 25 | 10 | 70 | 42 | M12×35 | M2 |
| T82 | 82×68×9 mm | 13 | 216 | 81 | 27 | 10 | 80 | 50.8 | M12×35 | M2 |
| T89 | 89×62×16 mm | 13 | 305 | 114.3 | 38.1 | 13 | 90 | 57.2 | M12×30 / M12×40 | M3 |
| T90 | 90×75×16 mm | 13 | 305 | 114.3 | 38.1 | 13 | 90 | 57.2 | M12×30 / M12×40 | M3 |
| T125 | 125×82×16 mm | 17 | 305 | 114.3 | 38.1 | 18 | 130 | 79.4 | M16×50 | M4 |
Tolerances
| Size | Tolerance |
|---|---|
| D | +3 mm |
| L1, L2, L3 | ±0.2 mm |
| B2, B3 | ±0.2 mm |
| V | ±0.2 mm |
Key Features
-
High-precision steel plate for accurate rail alignment
-
Optimized hole configuration for secure bolted fastening
-
Compatible with multiple elevator rail sizes
-
Enhances rail straightness and reduces vibration
-
Long service life under continuous mechanical load
-
Compliant with EN/ISO elevator guide rail installation standards
Typical Applications
-
Passenger and freight elevator guide rail assemblies
-
Rail extension and maintenance works
-
High-rise and mid-rise elevator systems
