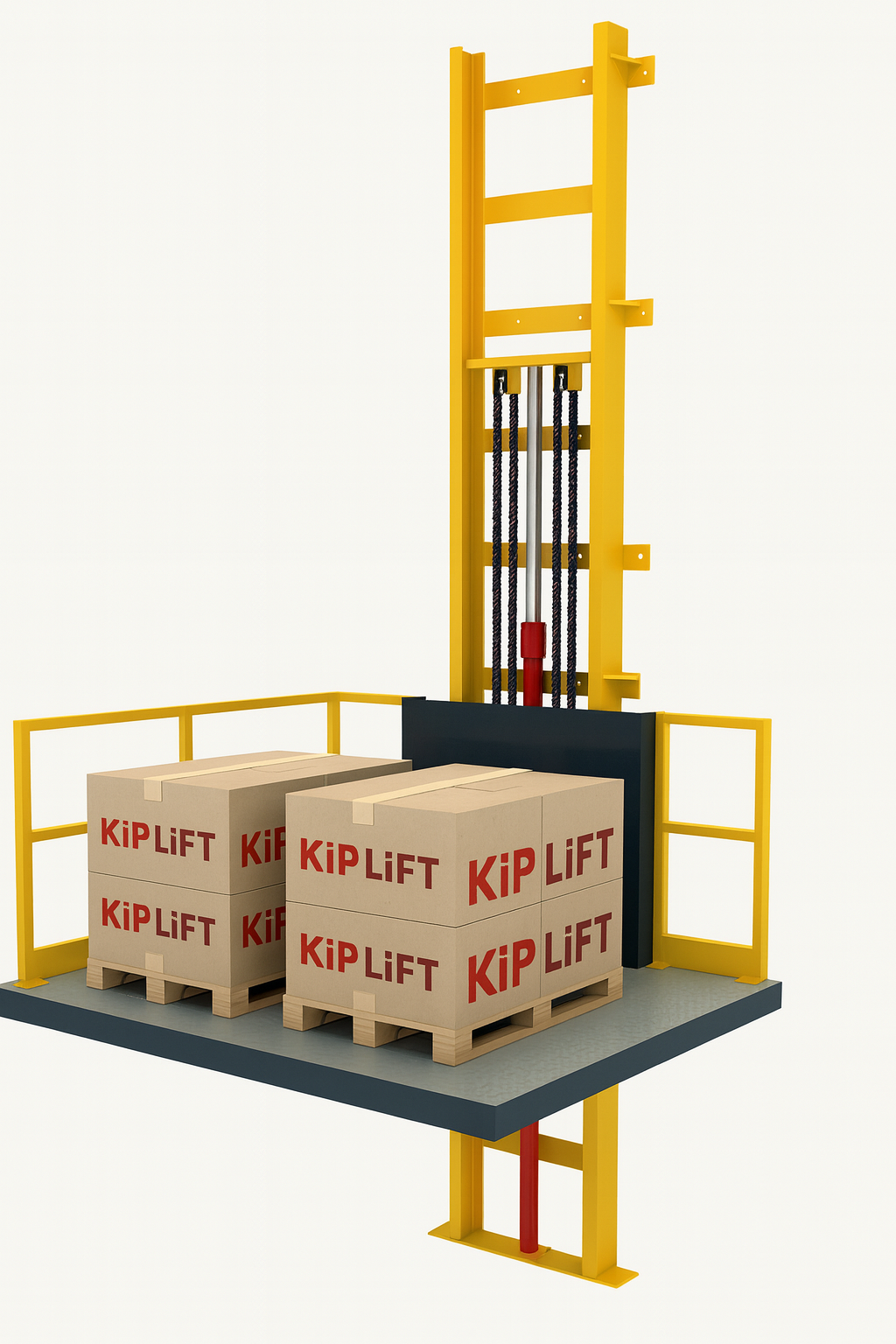

Freight Elevator Full Package – KL-FPS-ALL-800

The KL-FPS-ALL-800 Freight Elevator Full Package is a robust and fully customizable hydraulic freight lifting solution designed for the safe, stable, and efficient transportation of heavy loads between floors.

Manufactured with high-strength steel construction and CE-certified components, the system is suitable for both indoor and outdoor installations and can be configured as column-type or scissor-type, depending on load capacity, travel height, and installation environment.

With travel distances up to 12 meters and load capacities reaching 10 tons, the KL-FPS-ALL-800 is widely used across warehouses, logistics centers, factories, hospitals, construction sites, shopping malls, and agricultural facilities.

1. Structural & Hydraulic Design

• High-strength steel construction for maximum durability

• Suitable for pit-mounted or floor-mounted installation

• Honed hydraulic cylinders with chrome-plated piston rods

• Compact and high-quality hydraulic power unit

• Adjustable descent speed via flow control valve

• Overload safety valve for excess load protection

2. Safety Systems

• Hose rupture valves preventing uncontrolled descent

• Emergency safety valves against overload conditions

• Maintenance-free bushings on all moving joints

• Roller systems with grease-free bearings

• CE-certified safety architecture

⚠️ The freight elevator is designed exclusively for goods transportation and must not be used for personnel lifting.

3. Column-Type Freight Elevator

Column-type freight elevators operate on a vertical guide column using hydraulic and electric systems to raise and lower the platform.

Key Advantages:

• Compact structure

• Lower installation cost

• Easy operation and maintenance

• Travel height up to 12 meters

• Ideal for outdoor façades, industrial buildings, and construction sites

Commonly used as construction freight elevators in industrial and commercial environments.

4. Scissor-Type Freight Elevator

Scissor-type freight elevators utilize one or more scissor mechanisms beneath the platform to achieve vertical movement.

Key Advantages:

• Excellent stability for heavy loads

• High lifting capacity

• Flexible platform dimensions

• Suitable for indoor industrial environments

Widely used in warehouses, hospitals, heavy industry, manufacturing plants, and logistics facilities.

5. Custom Dimensions & Capacities

• Travel height: 0 – 12,000 mm

• Load capacity: 100 kg – 10,000 kg

• Platform dimensions determined based on:

  • Load size

  • Installation area

  • Application requirements

Each system is custom-engineered after capacity and site analysis.

6. Typical Application Areas

• Warehouses & Logistics Centers

• Factories & Production Facilities

• Construction Sites

• Shopping Malls & Commercial Buildings

• Hospitals & Medical Facilities

• Agriculture & Food Processing Plants

7. Purchasing Considerations

When selecting a freight elevator system, the following parameters are critical:

• Required load capacity

• Travel height

• Installation environment (indoor / outdoor)

• Safety requirements

• Energy efficiency expectations

Hydraulic systems provide low maintenance, high reliability, and energy-efficient lifting performance, making them ideal for industrial freight applications.
