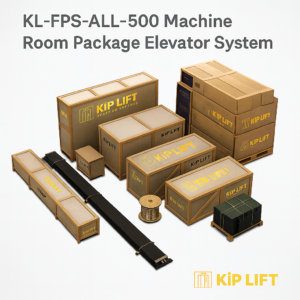

Machine Room Package Elevator System – KL-FPS-ALL-500

The KL-FPS-ALL-500 Machine Room Package Elevator System provides a full set of high-quality components required to install a complete traction elevator with a dedicated machine room.
Engineered for global export standards, this package includes the full mechanical structure, electrical control systems, safety subsystems, shaft equipment, doors, cabins, and wiring elements needed for seamless installation.

This package is suitable for residential, commercial, hotel, and mixed-use buildings requiring robust performance, smooth ride quality, and long-term reliability.

PACKAGE CONTENTS

1. Traction Machine Unit

• Geared or gearless traction machine (MR-type)

• Machine base frame

• High-efficiency motor

• Brake and encoder assembly (depending on model)

• Traction sheave & guarding system

2. Control System

• Elevator control panel (EN 81-compliant)

• Motor drive (VVVF drive unit)

• Revision box & pit box

• Machine room wiring set

• Automatic rescue (ARD/UPS) interface support

3. Shaft Equipment

• Guide rails (car & counterweight) with fishplates

• Guide rail brackets & fasteners

• Counterweight frame

• Tensioning pulley set

• Overspeed governor

• Steel wire rope / coated belts (depending on model)

• Shaft lighting & wiring materials

4. Cabin System

• Complete elevator cabin

• Car frame & sling

• Shock absorbers (buffer system)

• Handrail (optional stainless-steel variants)

• Cabin ventilation unit

• Cabin operating panel (COP)

• LCD or DOT display indicator

• Cabin top inspection station

5. Landing Equipment

• Landing door sets (steel painted or stainless options)

• Door locks (EN 81 certified)

• Landing operating panels (LOP)

• Visual & audio indicators

• Door installation kits

6. Automatic Door Operator

• VVVF door operator motor

• Door panels & sill assembly

• Door safety edges (curtain sensor)

• Door drive mechanism

7. Safety Components

• Overspeed governor

• Safety gear (progressive type)

• Full safety circuit wiring

• Buffers (oil or spring type depending on travel)

• Limit switches & sensors

• Rope grippers (optional)

8. Electrical Installation Materials

• Full shaft wiring harness

• Power cables & communication cables

• Flexible traveling cable

• Earthing & bonding components

• Cable trays and fixing materials

9. Documentation & Quality Assurance

• Assembly drawings

• Installation manual

• Electrical schematics

• Export packing list

• EN-compliant certification pack

System Features

• Supports machine-room traction systems up to mid-rise travel

• Compatible with single or double automatic doors

• Smooth ride quality with VVVF drive

• Energy-efficient traction machine options

• Flexible COP/LOP display configurations

• High-durability mechanical and electrical components

• Fully export-ready packaging
