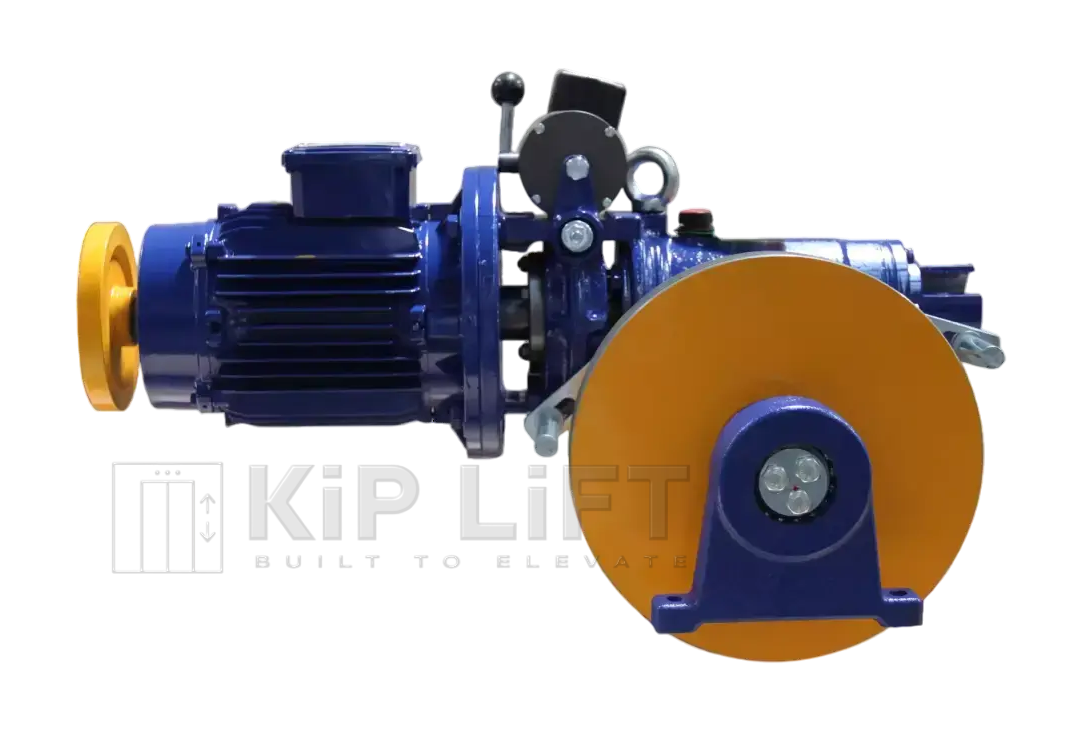

KL-CME-GM-A113

KL-CME-GM-A113 is a compact, high-efficiency geared elevator motor engineered for small and mid-capacity machine-room lift systems. Designed for low vibration, stable torque output, and long service life, it provides reliable performance for residential and light-commercial elevator applications.

Its 1:1 suspension system, Ø320–Ø400 mm pulleys, and optimized gearbox design make it suitable for modernization projects requiring quiet operation and consistent traction.

Performance Variations

The KL-CME-GM-A113 engine group is manufactured in multiple configurations covering:

• Capacity range: 320–500 kg

• Car speed range: 0.46 – 1.00 m/s

• Power output: 3.00 – 4.00 kW (4.08 – 5.44 HP)

• Operating current: 6.7 – 8.4 A

• Pulley diameters: Ø320 mm – Ø400 mm

• Rope count: 3–5

• Rope diameter: Ø8 mm / Ø10 mm

• Static load: 2500 kg

• Travel height: 33 m

These variations ensure wide compatibility with light-duty elevator cabins and modernization kits.

General Technical Features

• Car Speed Options: 0.46 / 0.58 / 1.00 m/s

• Suspension Type: 1:1

• Pulley Diameter: Ø320–400 mm

• Rope Count: 3–5

• Rope Diameter: Ø8–10 mm

• Static Load Capacity: 2500 kg

• Travel Height: 33 m

• High-strength traction components

• Low-noise geared design

• Durable brake and bearing system

• Energy-efficient motor winding

• Optimized torque for smooth start/stop performance

The KL-CME-GM-A113 geared elevator motor is designed to deliver long-term operational stability, low maintenance requirements, and comfortable ride quality.

Certifications & Compliance

This model conforms to international elevator machinery standards and includes:

• CE compliance for elevator machinery

• TSEK conformity for geared traction systems

• A3 brake safety certification

• ISO 9001:2015 Quality Management

• ISO 50001:2018 Energy Management

• EMC Certification

• Registered traction machine design conformity

Applications

• Residential buildings

• Light commercial buildings

• Low-rise lift systems

• Modernization projects

• Standard machine-room elevators

Key Advantages

• Quiet and stable operation

• Compact design suitable for limited machine-room space

• Wide capacity range (320–500 kg)

• High static load capability (2500 kg)

• Reliable performance for continuous daily use

• Reduced vibration and smooth comfort ride
