KL-CME-GM-A112

KL-CME-GM-A112 is a compact and efficient geared elevator motor engineered for small-scale machine-room applications. Designed to deliver stable torque, low vibration, and long service life, it is ideal for lightweight lift systems requiring reliable traction performance. Its 1:1 suspension configuration ensures smooth operation while maintaining a compact structure suitable for limited-space installations.

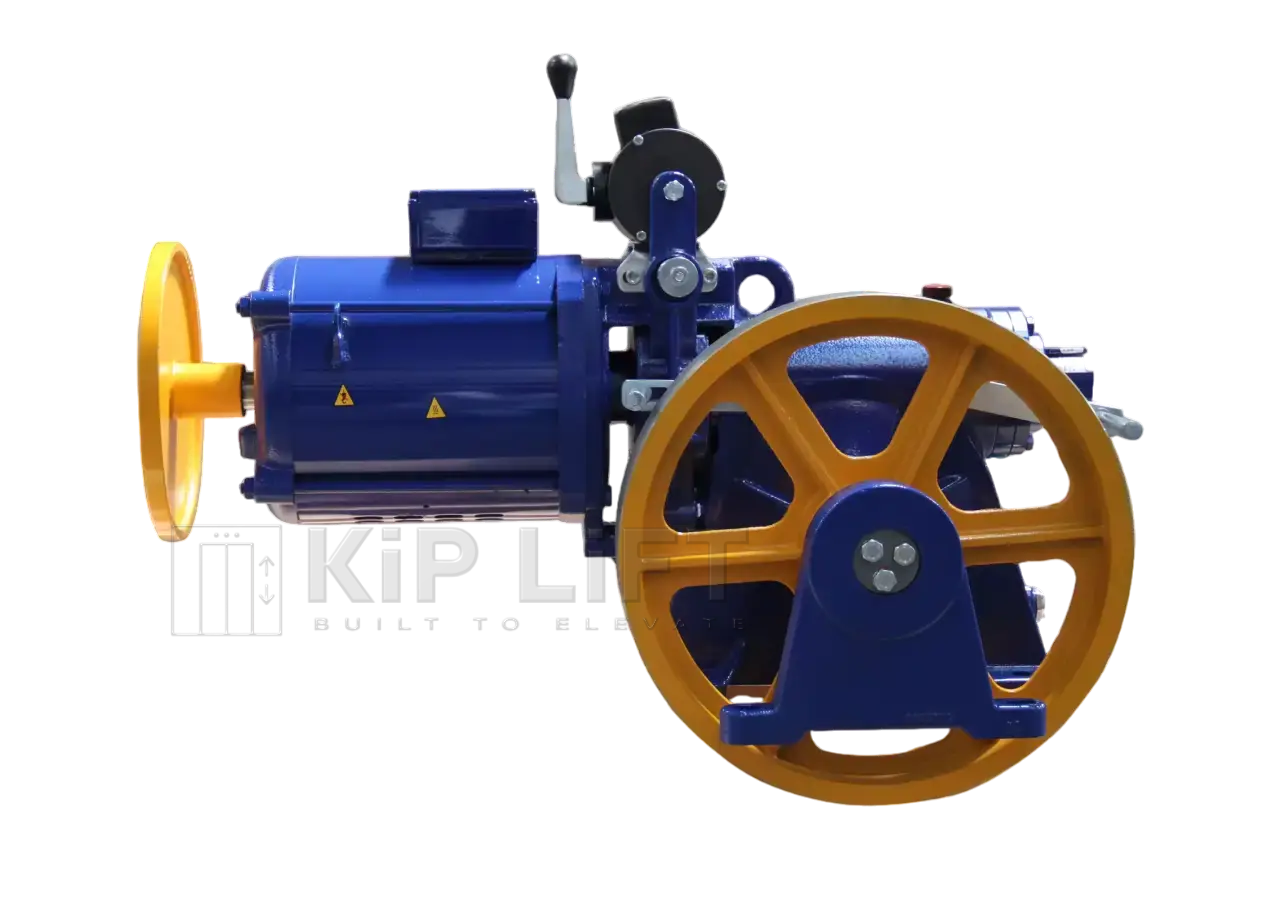

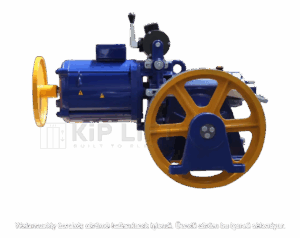

KL-CME-GM-A112 geared elevator machine/engine is designed for durable and efficient lift operations.

Optimized for minimal noise, low energy consumption, and consistent drive performance, this model is particularly suited for residential service lifts, small cargo lifts, and auxiliary lifting systems.

⭐ Performance Variations

This model covers the following technical capability:

• Cabin speed: 0.30 m/s

• Load capacity: 150 kg

• Power output: 1.10 kW / 1.50 HP

• Suspension type: 1:1

• Pulley diameter: Ø240 mm

• Rope count: 2

• Rope diameter: Ø6.5 mm

• Static load: 1500 kg

• Travel height: 33 m

⭐ General Technical Features

• Smooth traction performance with compact gearbox

• Low-vibration and low-noise drive structure

• High mechanical efficiency for small lift systems

• Durable braking and bearing components for extended life

• Stable operation under continuous-use conditions

• Optimized for energy-efficient lifting of low-capacity loads

The KL-CME-GM-A112 geared motor is engineered to provide long-term reliability, consistent ride comfort, and dependable traction in small-scale lift environments.

⭐ Certifications & Compliance

This model complies with major elevator machinery standards, including:

• CE conformity for elevator machinery

• Safety brake certification (EN standard)

• ISO 9001:2015 Quality Management

• ISO 50001:2018 Energy Management

• Electromagnetic Compatibility (EMC) compliance

These certifications ensure safe and globally compatible operation.

⭐ Applications

• Residential service lifts

• Small commercial service lifts

• Light-duty cargo lifts

• Low-rise auxiliary lifting systems

• Compact machine-room lift configurations

⭐ Key Advantages

• Quiet and smooth operation

• Compact and lightweight design

• Low power consumption

• Reliable braking performance

• Long-life mechanical components

• Ideal for small-capacity elevator systems
