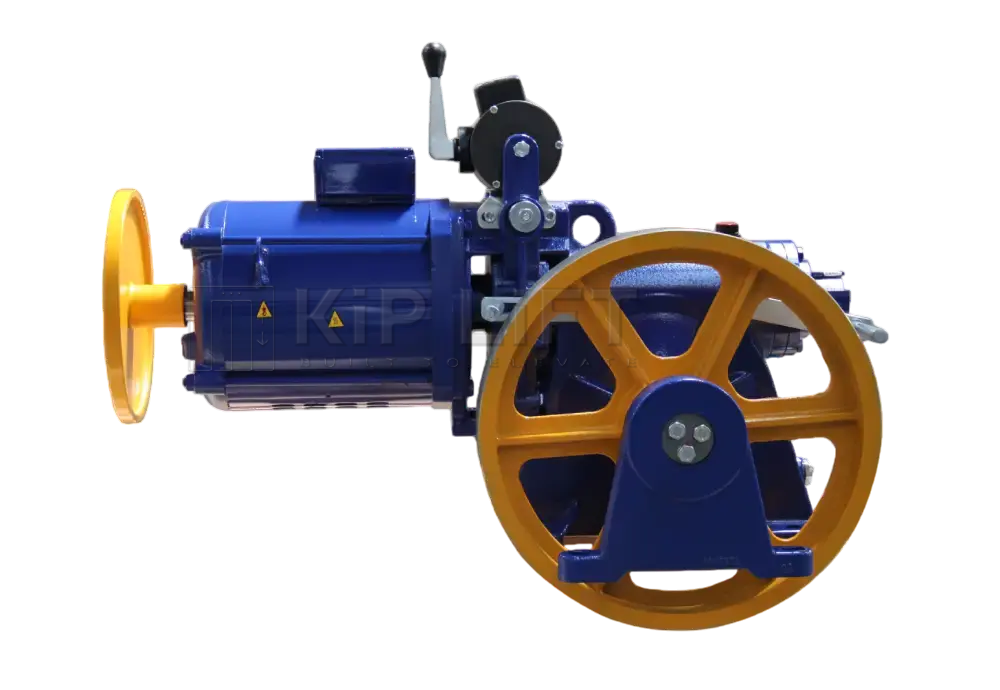

KL-CME-GM-A111 is a high-performance geared elevator motor engineered for modern machine-room applications. Designed for stable torque output, low vibration, and long-term operational durability, it supports a wide performance range suitable for multiple load classes. Its compact 1:1 suspension system makes it ideal for both new elevator installations and modernization projects requiring reliable traction performance.

KL-CME-GM-A111 geared elevator machine is designed for durable and efficient lift operations.

The KL-CME-GM-A111 platform maintains smooth, quiet operation with optimized gearbox structure, robust bearing assemblies, and long-life braking components. It delivers consistent traction performance across different capacity groups, making it suitable for residential and commercial elevator systems.

⭐ Performance Overview

The KL-CME-GM-A111 machine group covers a broad technical range:

• Cabin speed: 0.63 – 1.0 m/s

• Power output: 5.50 – 7.50 kW

• Load capacity: 630 – 1000 kg

• Suspension type: 1:1

• Pulley diameters: Ø400 – Ø480 mm

• Rope count: 5 – 6

• Rope diameter: Ø10 mm

• Static load: 3500 kg

• Travel height options: 21 m – 30 m

• Efficiency: 69% – 73%

This range covers all variations shown in the technical table, including different amperage values, pulley sizes, rope counts, and travel distances across all capacity groups.

⭐ General Technical Features

• Car speed options: 0.63 m/s, 0.71 m/s, 0.80 m/s, 1.00 m/s

• Power outputs: 5.50 kW / 7.5 HP and 7.50 kW / 10.2 HP

• Suspension type: 1:1

• Pulley diameters: Ø400 mm – Ø480 mm

• Rope count: 5 or 6

• Rope diameter: Ø10 mm

• Static load capacity: 3500 kg

• Travel height: 21 m or 30 m

• High-strength cast traction frame

• Low-noise, low-vibration gearbox

• High starting torque for loaded operation

• Continuous-duty design for residential & commercial applications

The KL-CME-GM-A111 geared machine is optimized for stable, energy-efficient, and long-life elevator performance.

⭐ Certifications & Compliance

This geared elevator motor complies with major international traction machine standards, including:

• CE conformity declaration

• TSEK certification for geared traction systems

• A3 brake safety certification (EN standard)

• ISO 9001:2015 Quality Management compliance

• ISO 50001:2018 Energy Management compliance

• Electromagnetic Compatibility (EMC) certification

• Design registration conformity for traction assemblies

These certifications ensure safe, stable, and globally compatible operation.

⭐ Applications

• Residential buildings

• Commercial buildings

• Mid-rise elevator projects

• Modernization packages

• Standard machine-room lift systems

⭐ Key Advantages

• Quiet and smooth operation

• Durable, efficient gear transmission

• Wide performance range (630–1000 kg, 0.63–1.0 m/s)

• High static load capability

• Long-life brake and bearing components

• Broad compatibility with standard lift systems
