KL-CME-GM-A110

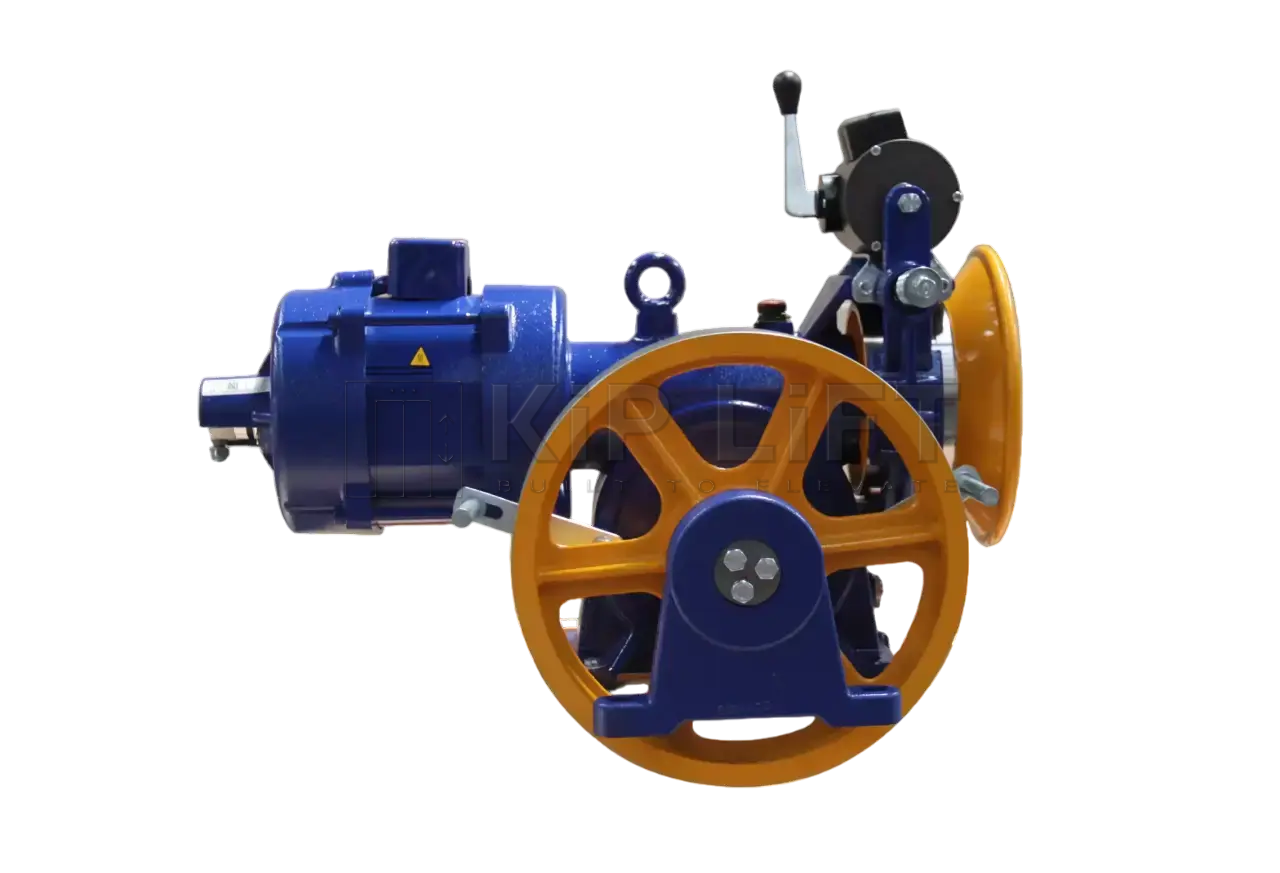

KL-CME-GM-A110 is a high-performance geared elevator motor (elevator engine) engineered for modern machine-room applications. Designed for optimal torque output, low vibration, and long-term durability, it offers multiple performance variations suitable for various load classes. Its compact 1:1 suspension configuration makes it ideal for both new installations and modernization projects requiring reliable traction performance.

KL-CME-GM-A110 is a high-performance geared elevator motor (elevator engine) engineered for modern machine-room applications. Designed for optimal torque output, low vibration, and long-term durability, it offers multiple performance variations suitable for various load classes. Its compact 1:1 suspension configuration makes it ideal for both new installations and modernization projects requiring reliable traction performance.

Performance Variations

The KL-CME-GM-A110 machine group is available in the following capacity and power configurations:

• 400 kg – 5.50 kW / 7.48 HP, 1:1 suspension, 13 A, Ø425 mm sheave, 5 ropes, travel height: 30 m

• 500 kg – 7.50 kW / 10.20 HP, 1:1 suspension, 17 A, Ø425 mm sheave, 5 ropes, travel height: 30 m

• 630 kg – 5.50 kW / 7.48 HP, 1:1 suspension, 13 A, Ø425 mm sheave, 5 ropes, travel height: 21 m

• 800 kg – 7.50 kW / 10.20 HP, 1:1 suspension, 17 A, Ø425 mm sheave, 5 ropes, travel height: 21 m

All configurations include a 3500 kg static load capacity, ensuring robust performance under demanding elevator operating conditions.

General Technical Features

• Car Speed: 1.00 m/s

• Suspension: 1:1

• Sheave Diameter: Ø425 mm

• Number of Ropes: 5

• Rope Diameter: Ø10 mm

• Static Load Capacity: 3500 kg

• Travel Height Options: 21 m / 30 m

• High-strength cast traction components

• Low-noise, low-vibration gearbox design

• High starting torque for heavy-duty applications

• Suitable for continuous residential and commercial use

The KL-CME-GM-A110 geared motor (engine) is optimized to deliver exceptional ride comfort, energy efficiency, and long service life.

Certifications & Compliance

This elevator motor/engine model complies with major international elevator machinery standards, supported by:

• CE conformity declaration for elevator machinery

• TSEK conformity for geared traction systems

• A3 brake safety certification (EN standard)

• ISO 9001:2015 Quality Management compliance

• ISO 50001:2018 Energy Management compliance

• Design registration conformity for traction machine assemblies

• Electromagnetic Compatibility (EMC) certification

These approvals ensure safe, stable, and globally compatible operation.

Applications

• Residential buildings

• Commercial buildings

• Mid-rise elevator projects

• Modernization packages

• Standard machine-room lift systems

Key Advantages

• Quiet and smooth operation

• Durable and efficient gear transmission

• Wide capacity range for versatile applications

• High static load capability

• Long-life brake and bearing components

• Broad compatibility with standard elevator systems
